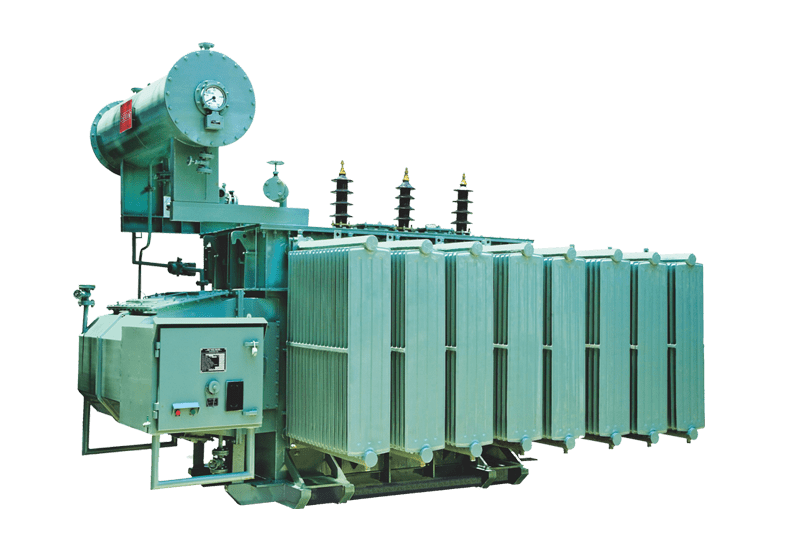

Our Transformers are manufactured with standard rating & customer requirement, Bharti’s Transformer are designed & tested as per IS2026. Our transformers are durable low capacitive, power saver and highly official.
Product Range of Distribution & Power Transformer:
Transformer Design Options:
Core is made from best grade imported cold rolled grain oriented silicon steel lamination. Laminations are cut at an angle of 45 degree Celsius. Interleaved & mitered joints reduce the core losses & magnetizing current. Core is clamped with steel channel rigidly to reduce the cartile sound level.
2. Winding:Windings are designed to optimize dynamic, thermal Mechanical & Electrical strives depending upon the current & voltage requirement. The coils are wound with electrolytic grade high conductivity annealed wire & stripe covered with high quality insulation. Colling ducts are provided between windings & oil to minimize hot spot temperature & temp. gradient.
3. Insulation & Oil:Insulation material like pre compressed board, bakelite, tube, insulating top, varnish, epoxy/porcelains bushing etc are used of best quality to ensure long life of transformers. Oil is used as a coolant conforms IS 335 is centrifuged & filtered before filling into the transformer to ensure free from dust & moisture
4. Tanks & Radiator:All tanks are assembled by cold/hot rolled steel plates through welding. They are equipped with radiator corrugated steel sheets in accordance with capacity.
5. Paint:Interior & Exterior surface are cleaned by chemical & coated with red oxide & 2 final coat of paint outside of tank body is coated for better & long life.
6. Temperature Rise:Designed for maximum temp rise at full rated load, 40-50 degree Celsius for Aluminum wound & 45-55 degree Celsius for copper wound transform.
Every Equipment sold is backed by our excellent & prompt service network. Our organization is well known by virtue of strong support in terms of pre sale & after sales rendered by us during any solutions.
